Quel Classic

Four Water Options From One Tap

The Quel Classic provides four everyday water functions from one kitchen tap:

• Filtered boiling water at up to 98°C for hot drinks, cooking and food preparation
• Filtered cold water for drinking, preparing food and filling bottles
• Standard hot water from your household hot-water system
• Standard cold water supplied directly from the mains

The integrated system helps replace the kettle and filter jug, reducing the number of appliances needed on the kitchen worktop.

Choose Your Tap Shape and Finish

The Quel Classic is available in two distinctive tap shapes:

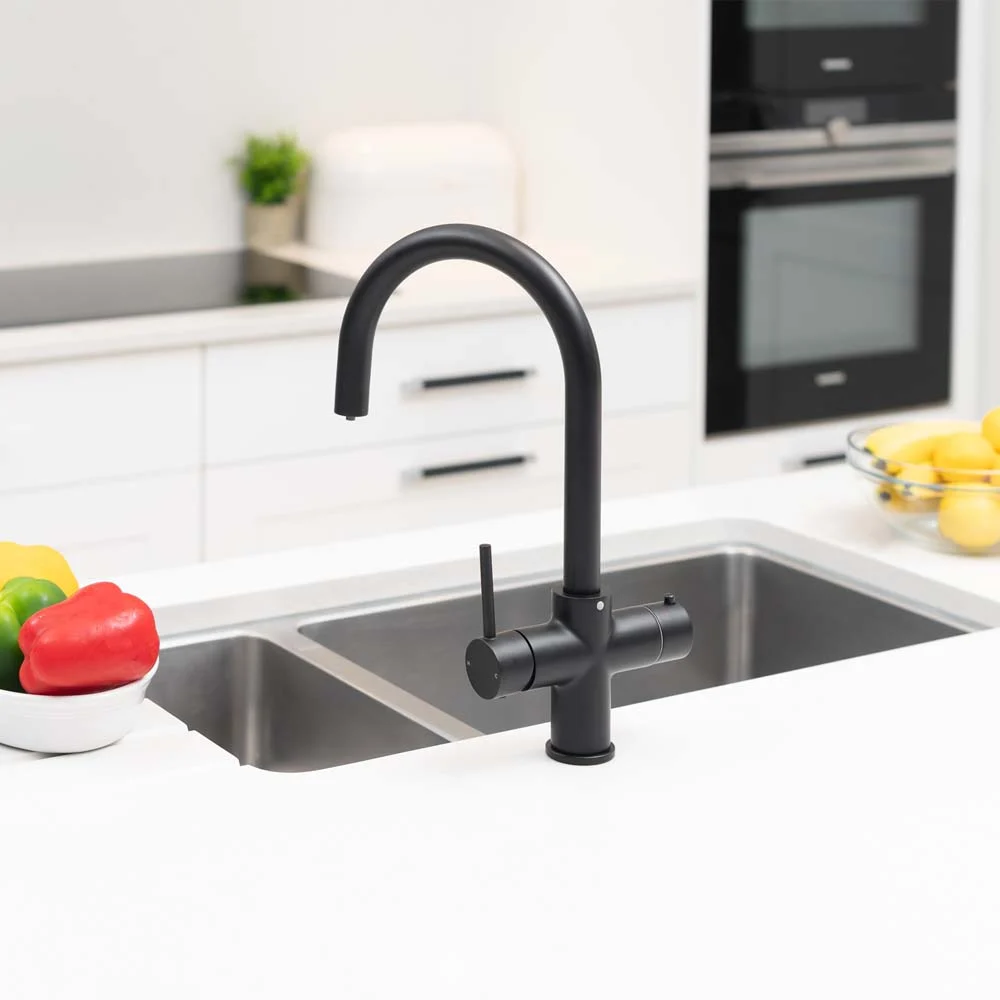

• C-shape – a traditional curved gooseneck design

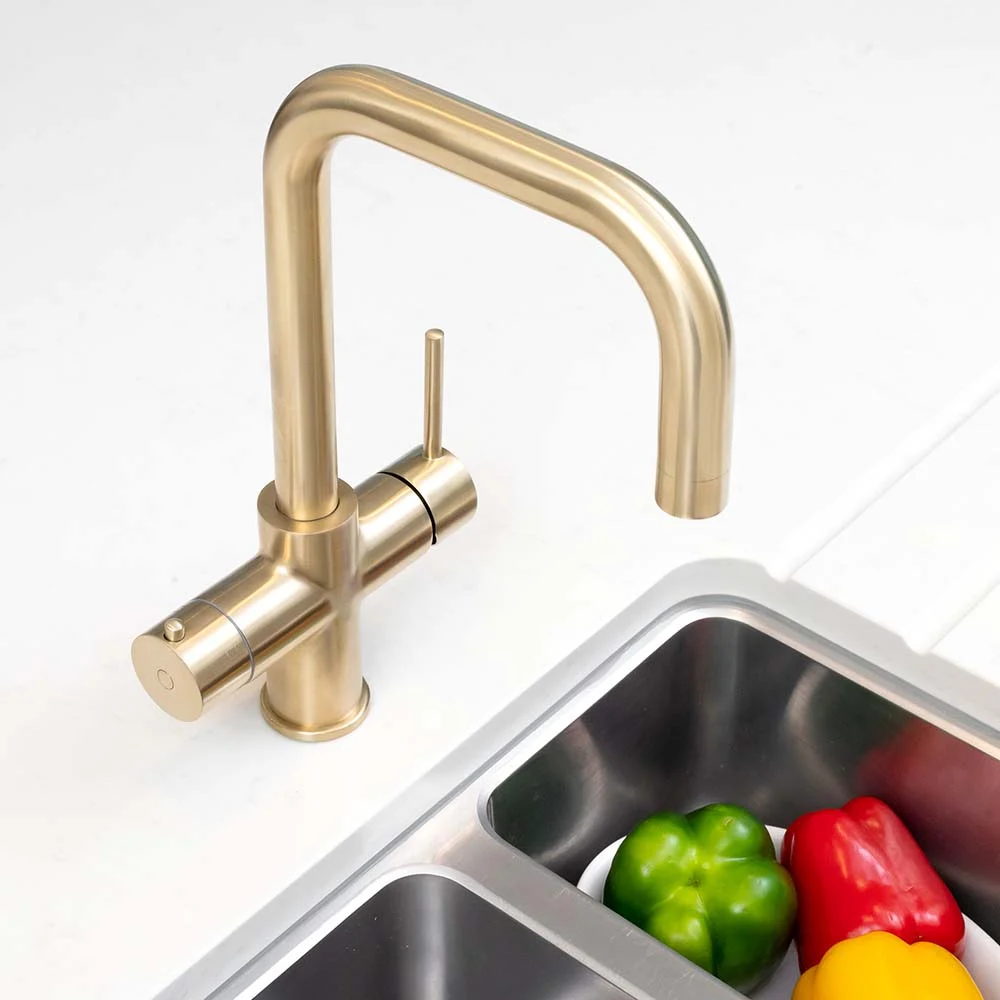

• D-shape – a more angular, contemporary design

Choose from six finishes to complement your kitchen: Brushed Brass, Polished Chrome, Matt Black, Brushed Gunmetal Grey, Brushed Rose Gold and Polished Rose Gold.

Choose Your Boiler Capacity

Select the boiler size that best suits your household and expected usage:

• 2.4-litre boiler – delivers approximately 13 litres per hour, equivalent to up to 54 cups
• 4-litre boiler – delivers approximately 22 litres per hour, equivalent to up to 92 cups

Both options provide filtered boiling water at up to 98°C. The smaller boiler is ideal for standard household use, while the larger option provides greater capacity for busy households, offices and frequent entertaining.

Integrated Water Filtration

The single nano-phosphate filtration system helps reduce chlorine and other unwanted impurities while protecting the boiler against limescale build-up.

Filtered water is supplied through both the boiling and cold filtered-water functions. The filter should normally be replaced every six months to maintain water quality, system performance and warranty cover.

Child-Safe Boiling-Water Control

A spring-loaded safety control with push-button activation helps prevent accidental dispensing of boiling water. The boiling-water control must be deliberately activated and held while water is dispensed.

The insulated cool-touch spout helps reduce surface heat during boiling-water operation.

Premium Solid-Brass Construction

• Durable solid-brass construction
• Choice of C-shape or D-shape design
• Smooth 180° swivel spout
• Quarter-turn ceramic cartridges
• Aerated standard-water flow
• Separate control for filtered cold water
• Choice of six contemporary finishes

Compact Under-Sink Installation

The boiler and filtration components fit discreetly inside the kitchen cupboard, helping to keep the worktop clear.

• Tap hole: 35 mm
• Water pressure: minimum 1.5 bar and maximum 5.0 bar
• Installation components: flexible connecting hoses and tap fixing kit included

Warranty

• 5-year warranty on the Quel Classic tap
• 2-year standard warranty on the under-sink boiler
• Boiler warranty extendable to 5 years, subject to registration and the applicable warranty terms

Filters must be replaced at the required intervals to maintain system performance and warranty cover.

Tap Specification:

• Mounting: Deck or sink mount (35mm hole required)
• Tap Handle Clearance: Minimum distance from the center of the tap hole to the wall is 80 mm
• Material: Quality brass for long life
• Spout Insulation: Keeps the spout cool to touch while dispensing boiling water
• Cartridges: Quarter turn ceramic cartridges for ease of use and long service life
• Spout Features: 180-degree swivel spout with aerator fitting for maximum flexibility and good water flow
• Levers:
  • Right-hand side Hot/Cold water lever – easy to use single lever
  • Left-hand side safety sprung lock handle for child safety and additional safety feature
• Additional Features: Opposite twist for cold filtered water
• Installation: Flexible connecting hoses and tap fixing kit included
• Water Pressure Requirements: Minimum 1.5 bar, maximum 5.0 bar
• Guarantee: 5 years
• Design: C-Shape Neck

Tap Dimensions:

• Height: 397.3mm
• Reach: 200mm
• Spout Width: 28mm
• Spout Height: 226.6mm
• Tap Hole: 35mm

Single Filter System Specification:

• Function: Filters water, protects tank from limescale build up, and improves boiling water taste
• Filter: Nano phosphate filter to prevent limescale in the tank. Removes bacteria, chlorine, and other particles
• Installation: Fits neatly under the sink with easy installation
• Replacement Cycle: Estimated every 6 months
• Filter Housing Dimension:
  • Height: 295mm
  • Width: 80mm

What does our filter remove?

• Chlorine: 99.5%
• Trichloromethane: 95.78%
• Lead: 98.4-99.2%
• Arsenic: 97.8%-86.7%
• Iron: 99.5%
• Manganese: 98.7%

*Free Delivery is offered to UK Mainland destinations only. We will add a delivery charge to below destinations:

• Scottish Islands
• Scottish Highlands
• Northern Ireland
• Isle of Man, Jersey and Guernsey

————————————

Chiller Specification

• Cold Water Tank: Stainless Steel, 1.95 Litres
• Cooling Performance: 11.5 Litres per hour below 10˚C at influent water temperature
  of 20˚C
• Thermostat: 4˚C to 10˚C Factory set (Do not adjust)
• Refrigeration System: R-600a, 16g
• Power Supply: 220-240Volt, 50/60 Hz
• Inlet and Outlet Pipes: ¼” Push Fit
• Ventilation: allow for 50 mm clearance on all sides
• Please note that all chillers need adequate ventilation to work efficiently. Without proper ventilation, performance will be adversely affected, potentially leading to premature failure. Quel Tap provides grids free of charge for kitchen doors to ensure correct ventilation. If the chiller fails due to insufficient ventilation, it will not be covered by your Quel Tap warranty.

Chiller Dimensions:

• Height – 300mm
• Width – 410mm
• Depth – 300mm

Weight – 12.5kg
