Quel Digital

Four Water Options From One Tap

The Quel Digital provides four everyday water functions from one kitchen tap:

• Filtered boiling water at up to 98°C for tea, coffee, cooking and food preparation

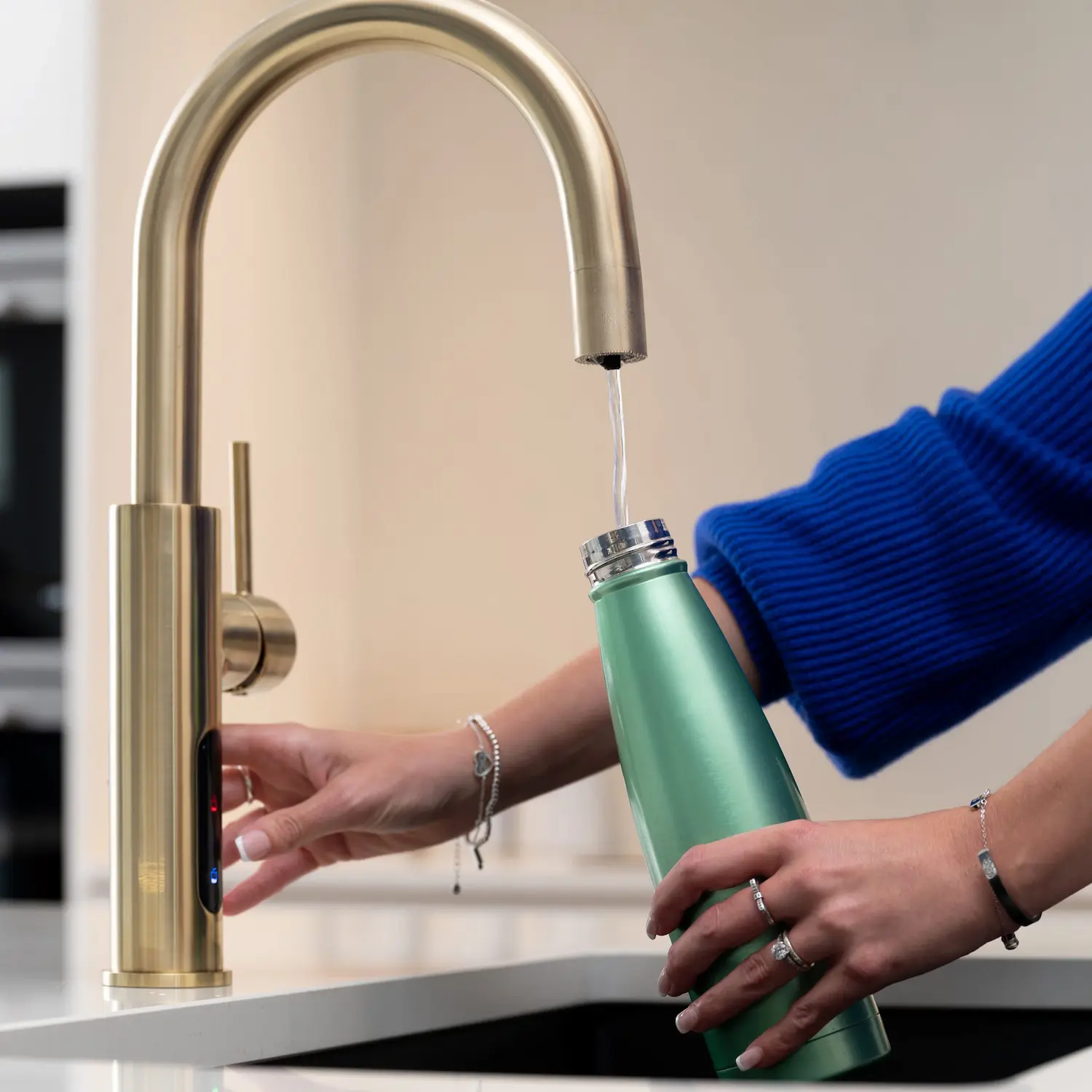

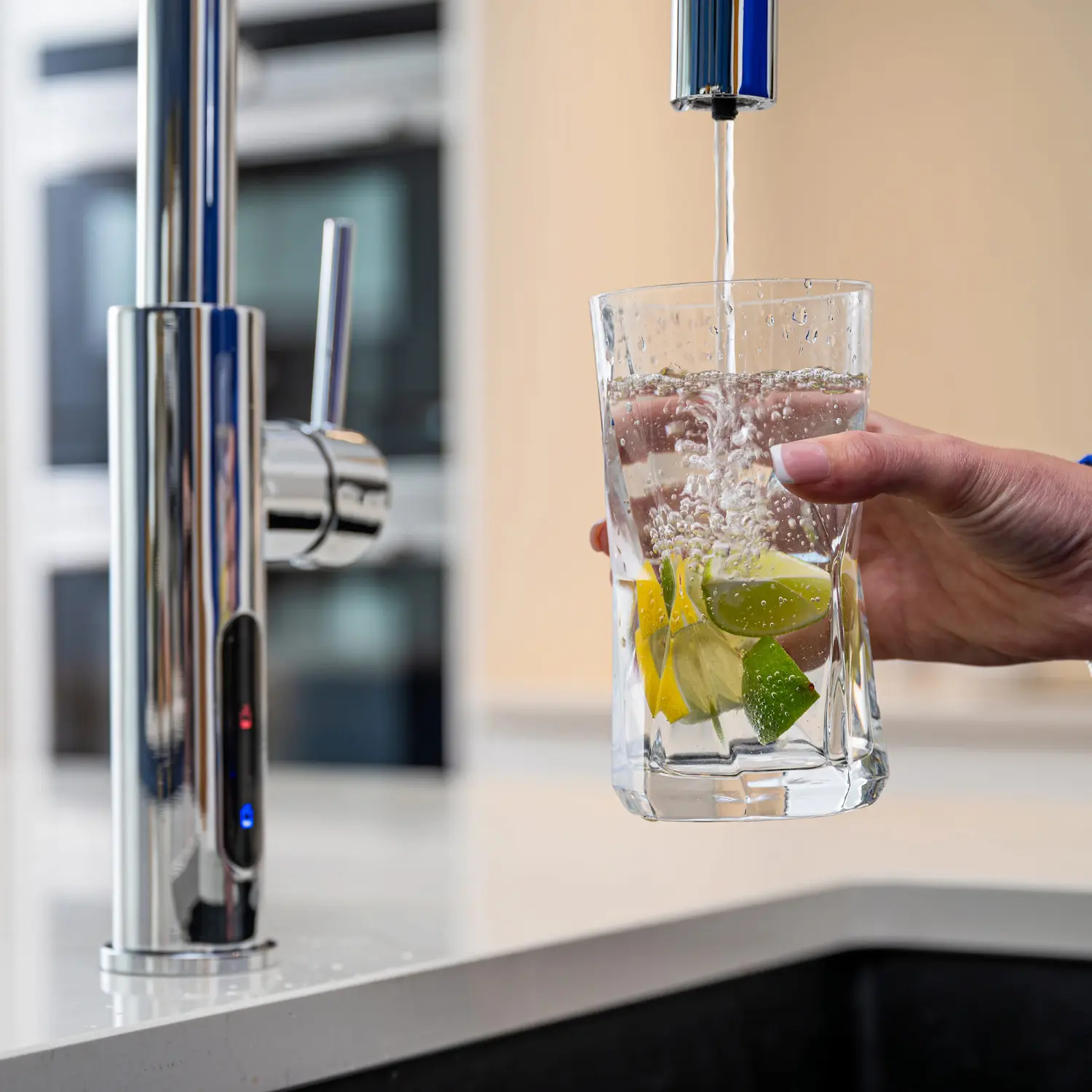

• Filtered cold water for drinking, preparing food and filling bottles
• Standard hot water from your household hot-water system
• Standard cold water supplied directly from the mains

The integrated system helps replace the kettle and filter jug, reducing the number of separate appliances required on your kitchen worktop.

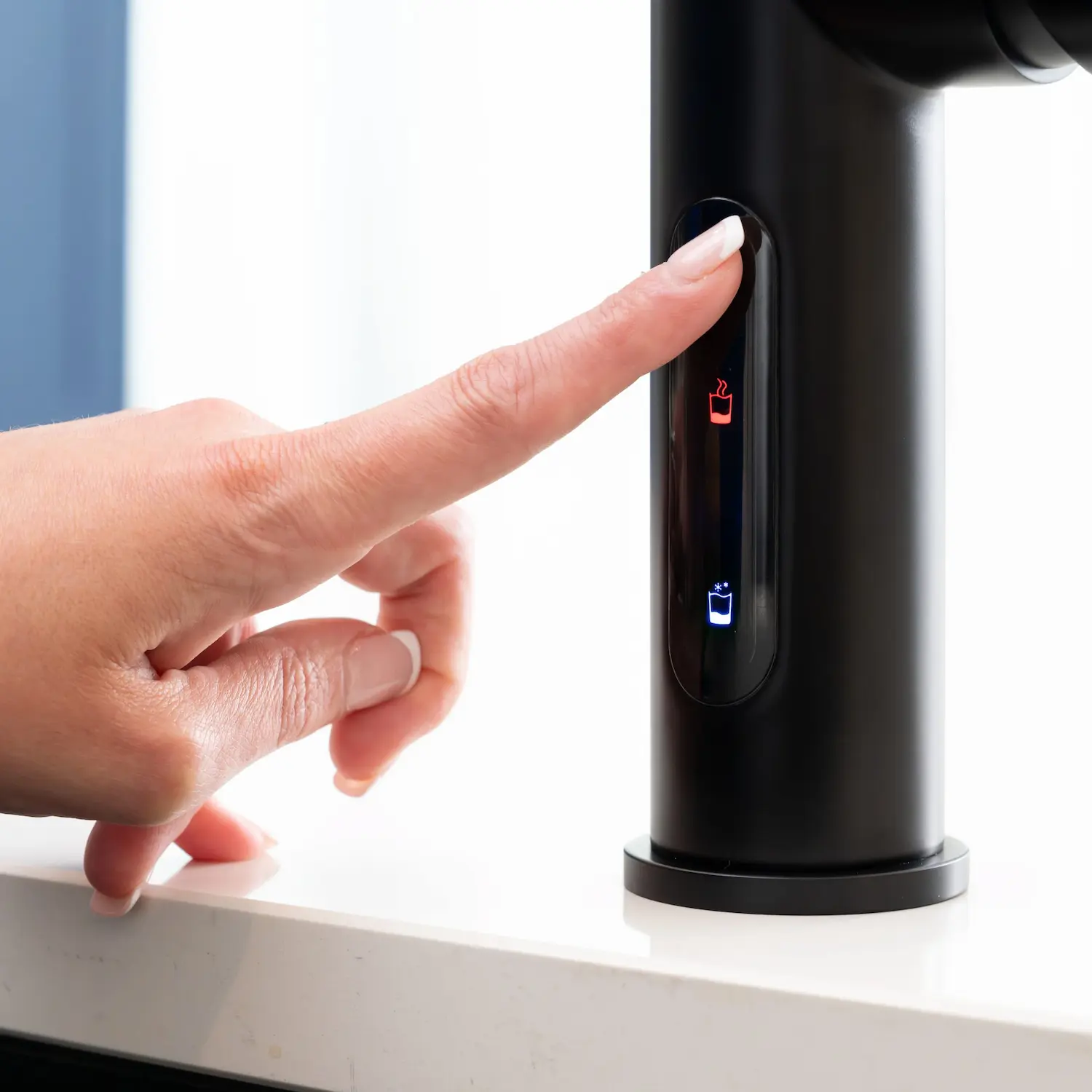

Colour-Coded Digital Touch Controls

The integrated digital touchpad provides simple control of the filtered-water functions using clear colour-coded LED indicators:

• White LED: press and hold for three seconds to unlock the filtered-water controls
• Red LED: press and hold to dispense filtered boiling water
• Blue LED: tap to start or stop the filtered cold-water flow

The standard hot and cold-water functions are controlled independently using the conventional side handle.

Adjustable 2.4-Litre Boiler

The compact under-sink boiler provides approximately 13 litres of boiling water per hour, equivalent to up to 54 cups.

• Capacity: 2.4 litres
• Temperature range: adjustable from 55°C to 98°C
• Temperature accuracy: approximately ±0.5°C
• Tank capacity: approximately 7–8 cups from a full tank
• Hourly output: approximately 13 litres or up to 54 cups
• Initial heat-up time: approximately eight minutes
• Display: clear front-mounted digital temperature display

Integrated Water Filtration

The single nano-phosphate filtration system helps reduce chlorine, lead and other unwanted impurities while protecting the boiler against limescale build-up.

Filtered water is supplied through both the boiling and cold filtered-water functions. The filter should normally be replaced every six months to maintain water quality, boiler protection and system performance.

Digital Boiling-Water Safety

The boiling-water function must first be unlocked using the digital touchpad. Filtered boiling water is dispensed only while the red control is deliberately pressed and held, and the flow stops as soon as the control is released.

The insulated cool-touch spout helps reduce surface heat while filtered boiling water is being dispensed.

Contemporary C-Shape Design

• Integrated colour-coded digital touchpad
• Contemporary C-shape profile
• Smooth 180° swivel spout
• Quarter-turn ceramic cartridge
• Aerated standard hot and cold-water flow
• Separate side handle for standard hot and cold water
• Choice of six contemporary finishes

Compact Under-Sink Installation

The boiler, filtration system and digital-control junction box fit discreetly inside the kitchen cupboard, helping to keep the worktop clear.

• Tap hole: 35 mm
• Required clearance: minimum 80 mm from the centre of the tap hole to the wall
• Water pressure: minimum 1.5 bar and maximum 5.0 bar
• Electrical supply: two accessible electrical sockets required – one for the boiler and one for the digital-control junction box
• Installation components: flexible connecting hoses and tap fixing kit included

Warranty

• 5-year warranty on the Quel Digital tap
• 2-year standard warranty on the under-sink boiler
• Boiler warranty extendable to 5 years, subject to registration and the applicable warranty terms

Filters must be replaced at the required intervals to maintain system performance and warranty cover.

Digital 4-in-1 Tap Specification:

• Mounting: Deck or sink mount (35mm hole required)
• Tap Handle Clearance: Minimum distance from the centre of the tap hole to the wall is 80 mm
• Spout Insulation: Keeps the spout cool to touch while dispensing boiling water
• Cartridges: Quarter turn ceramic cartridges for ease of use and long service life
• Spout Features: 180-degree swivel spout with aerator fitting for maximum flexibility and good water flow
• Levers:
  • Right-hand side Hot/Cold water lever – easy to use single lever
• Digital Touch Pad:
  • WHITE LED: Hold 3s to unlock water functions. Prevent s accidental activation of the boiling water function
  • RED LED: Hold to dispense boiling water.
  • BLUE LED: Tap to start/stop filtered ambient water.
• Additional Features: Opposite twist for cold filtered water
• Installation: Flexible connecting hoses and tap fixing kit included. 2 electric sockets required: Boiler, Chiller and Junction Box.
• Guarantee: 5 years

Tap Dimensions:

• Height: 397.3mm
• Spout Reach: 200mm
• Spout Width: 28mm
• Tap Hole: 35mm

————————————

2.4 litre Boiler Specification:

• Display: Front view digital touch screen – easy to read and use
• Installation: Simple and quick, normally takes no more than one hour depending on existing plumbing
• Capacity: 2.4 litres (sufficient for 7-8 cups of tea or coffee)
• Water Pressure: Minimum 1.5 bar, maximum 5.0 bar
• Temperature Range: Pre-set 55°C to 98°C with thermostat accuracy to plus/minus 0.5°C
• Heat Up Time: Approximately 8 minutes for cold water
• Materials:
  • Outer Casing: Powder coated mild steel
  • Inner Tank: Stainless steel
• Insulation: Latest technology for maximum energy efficiency
• Guarantee: Tank has a 2 year guarantee

Boiler Dimensions:

• Height: 262mm
• Width: 196mm
• Depth: 196mm

Boiler Electrical Data:

• Standard 13 amp detachable cable
• Voltage: 220-240 volt
• Power Rating: 1.5kw

————————————

Single Filter System Specification:

• Function: Filters water, protects tank from limescale build up, and improves boiling water taste
• Filter: Nano phosphate filter to prevent limescale in the tank. Removes bacteria, chlorine, and other particles
• Installation: Fits neatly under the sink with easy installation
• Replacement Cycle: Estimated every 6 months
• Filter Housing Dimension:
  • Height: 295mm
  • Width: 80mm

What does our filter remove?

• Chlorine: 99.5%
• Trichloromethane: 95.78%
• Lead: 98.4-99.2%
• Arsenic: 97.8%-86.7%
• Iron: 99.5%
• Manganese: 98.7%

*Free Delivery is offered to UK Mainland destinations only. We will add a delivery charge to below destinations:

• Scottish Islands
• Scottish Highlands
• Northern Ireland
• Isle of Man, Jersey and Guernsey

Installation:

• Indoor use only.
• Must not be installed in areas where water jets could be used.
• Allow at least 24 hours after transportation before turning on the unit to ensure proper fluid redistribution.
• A tilt of less than 2° is required for safe operation.

Maintenance:

• Replace the filter cartridge every 6 months to prevent limescale build-up.
• The unit must not be cleaned with water jets.

Regularly inspect for leaks or damage. If found, isolate the unit, drain, and contact the manufacturer.
