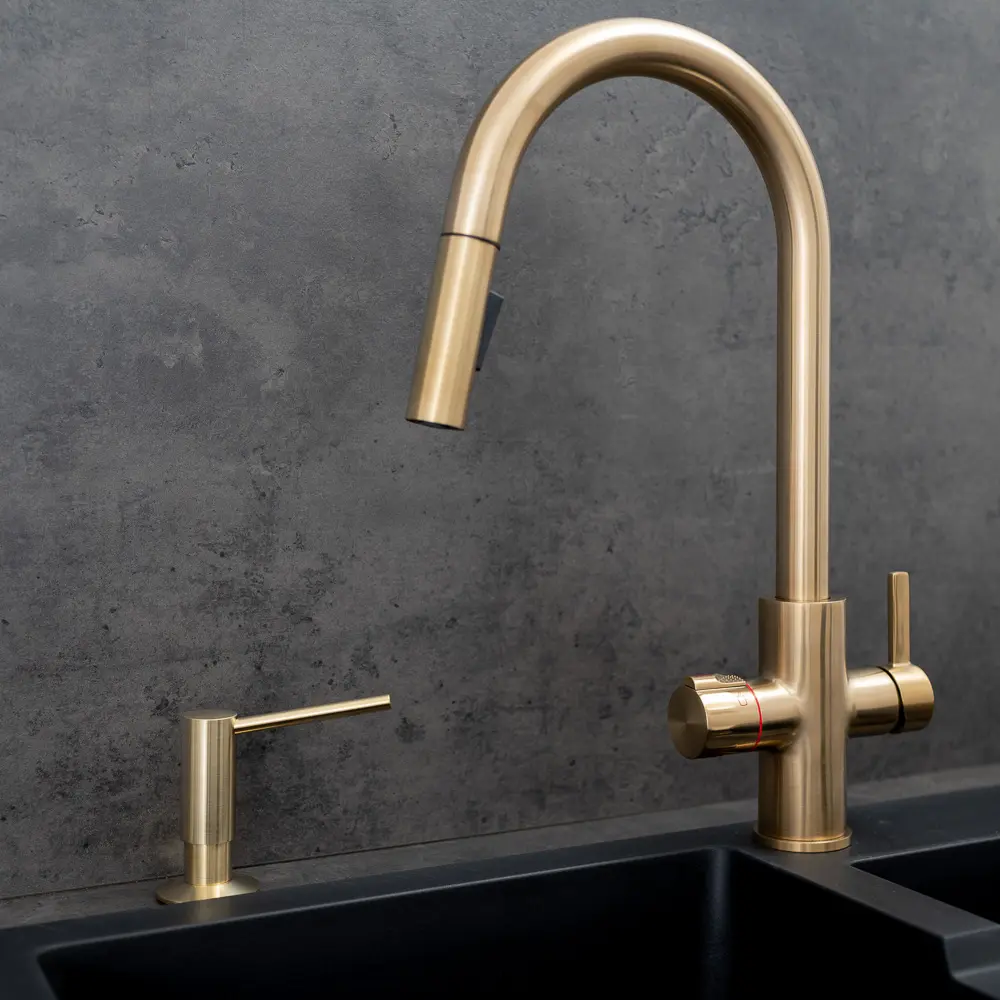

Quel Ultra

Four Water Options From One Tap

The Quel Ultra provides four everyday water functions from a single kitchen tap:

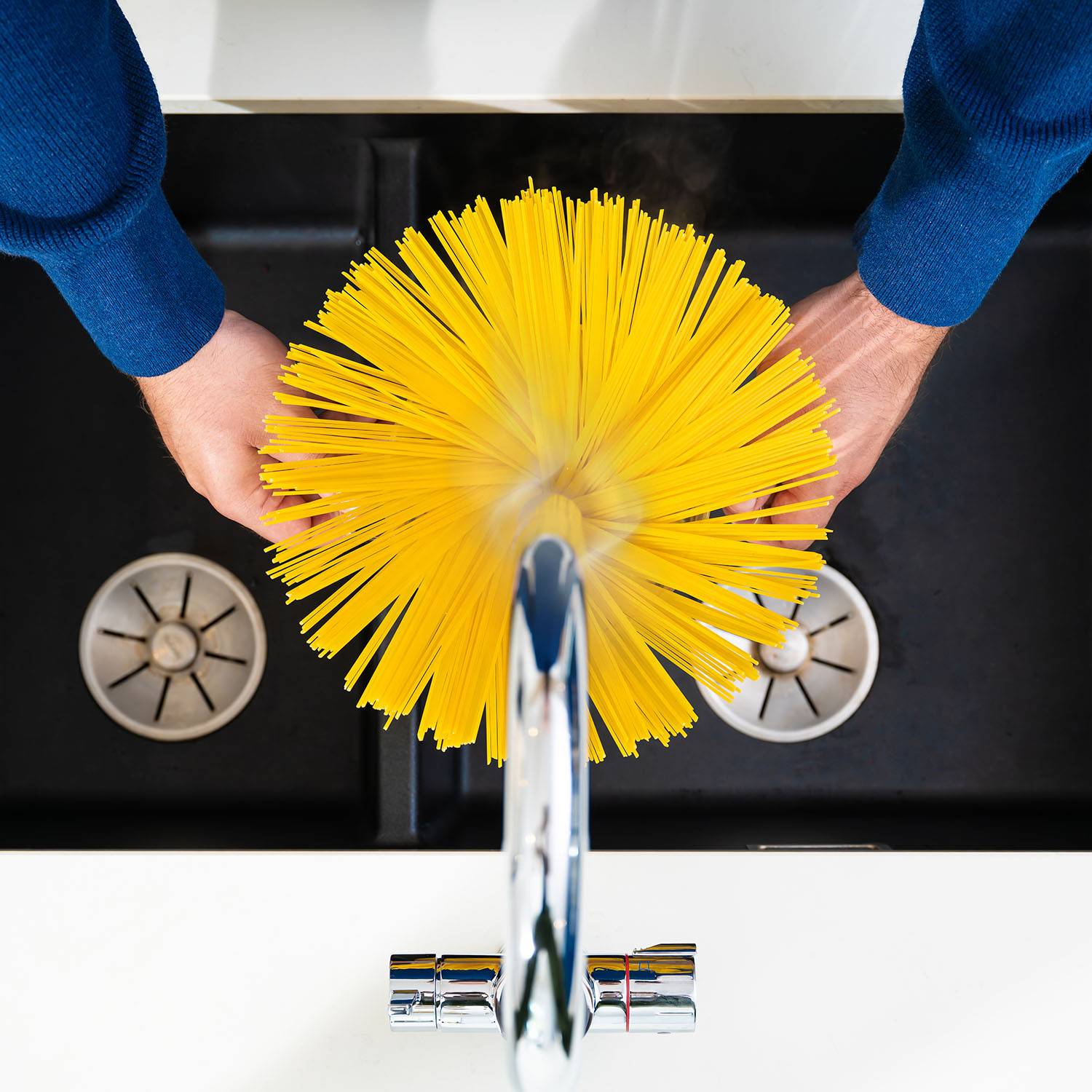

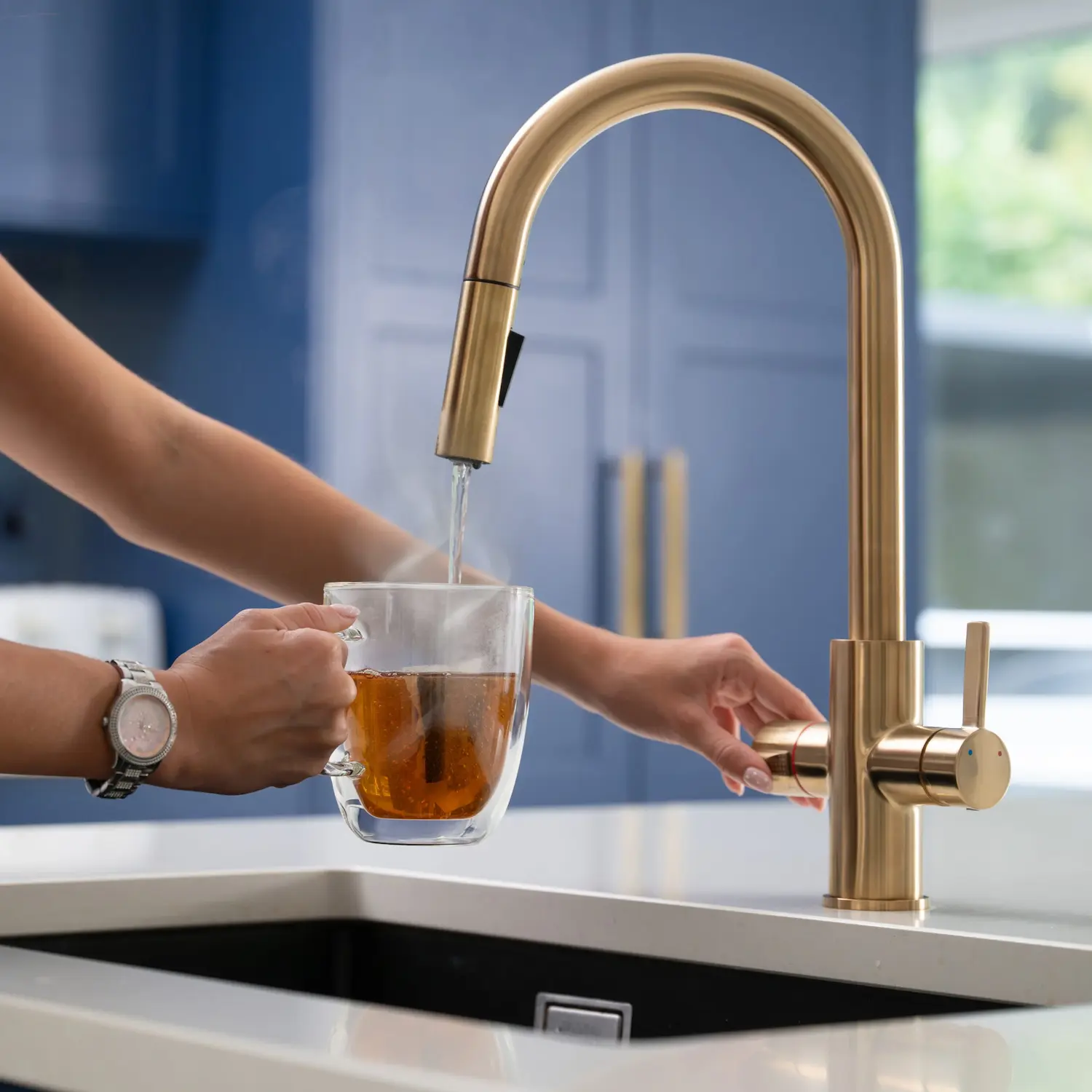

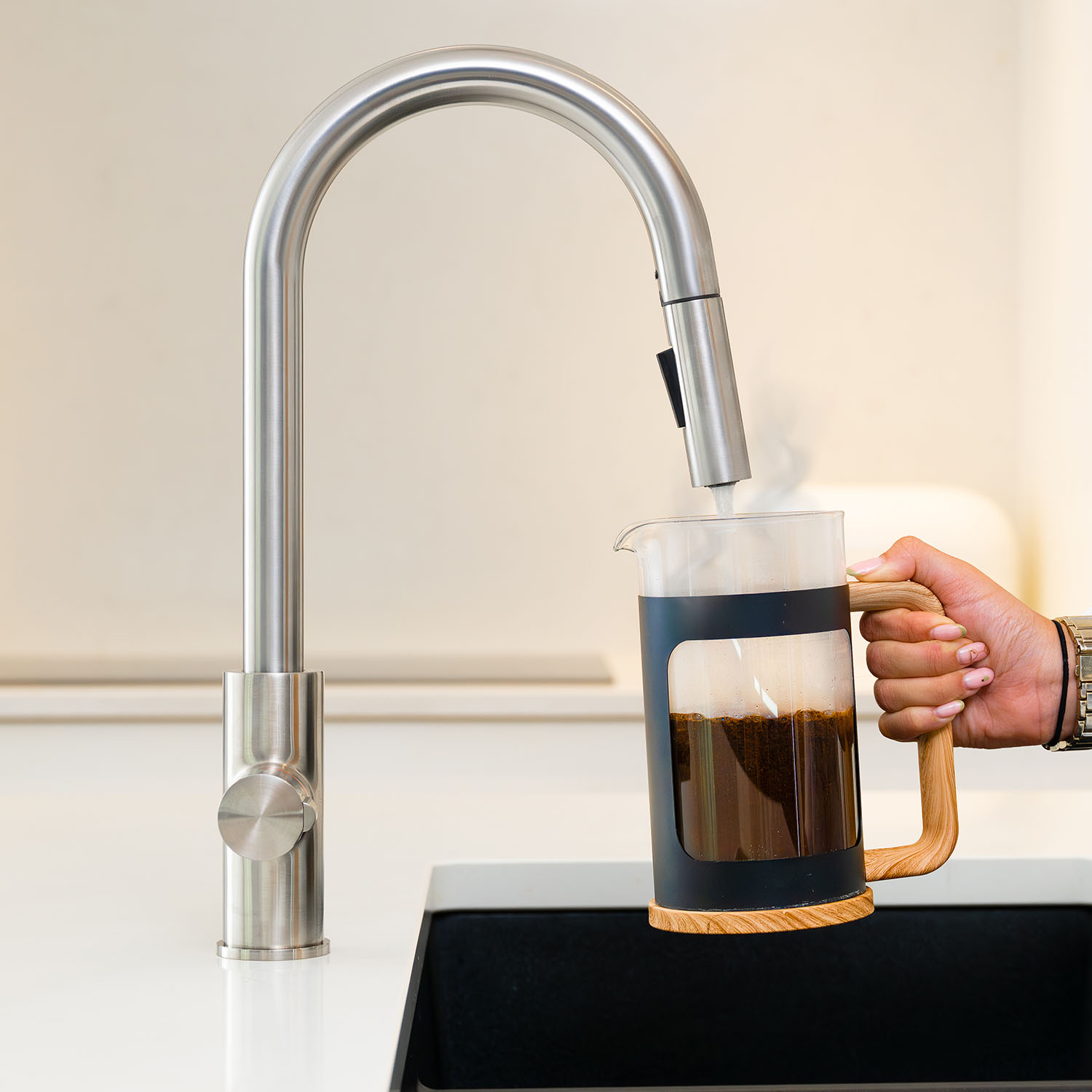

• Filtered boiling water at up to 98°C for hot drinks, cooking and food preparation

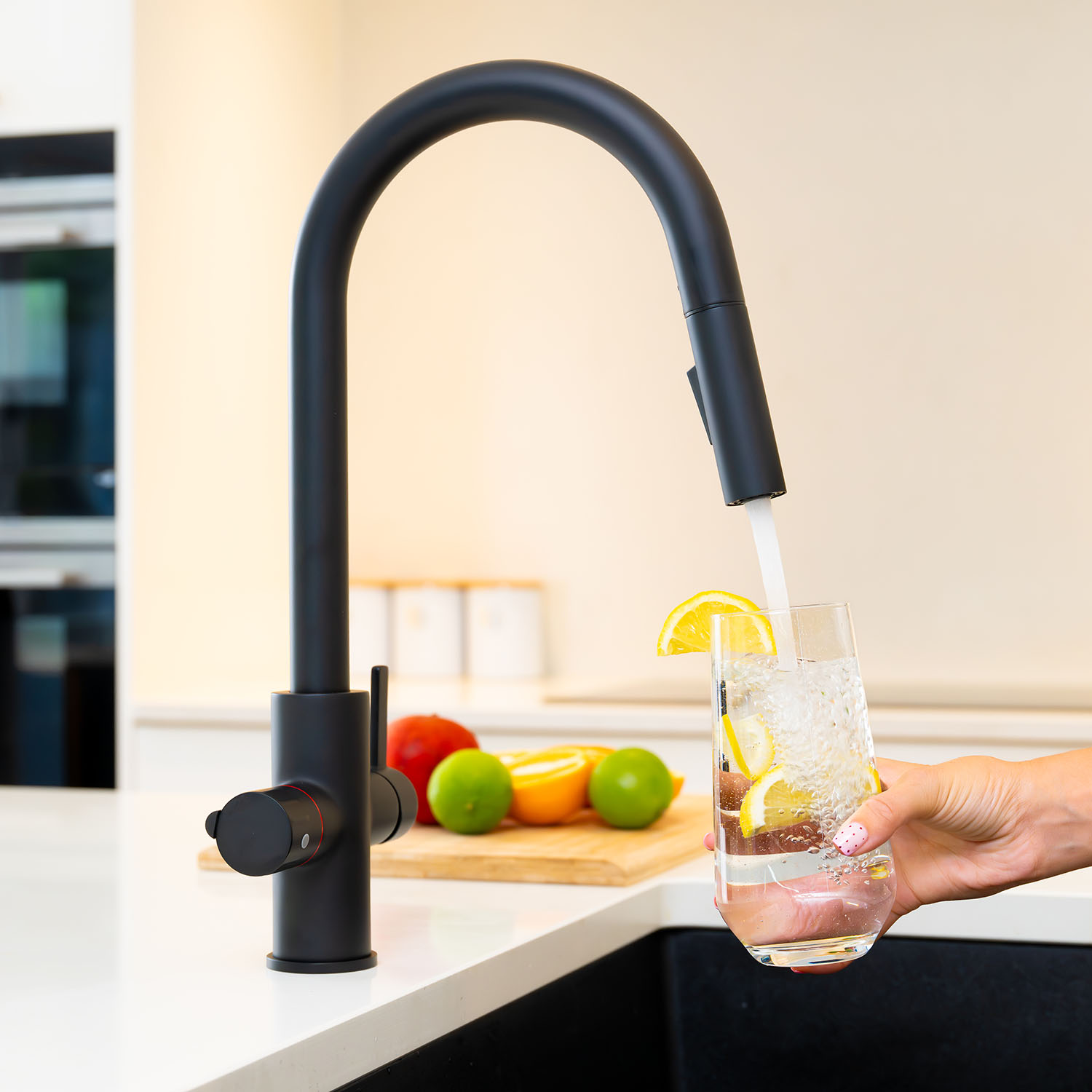

• Filtered cold water for drinking and filling bottles
• Standard hot water supplied from your household hot-water system
• Standard cold water supplied directly from the mains

The integrated system helps replace the kettle and filter jug, reducing the number of appliances required on your kitchen worktop.

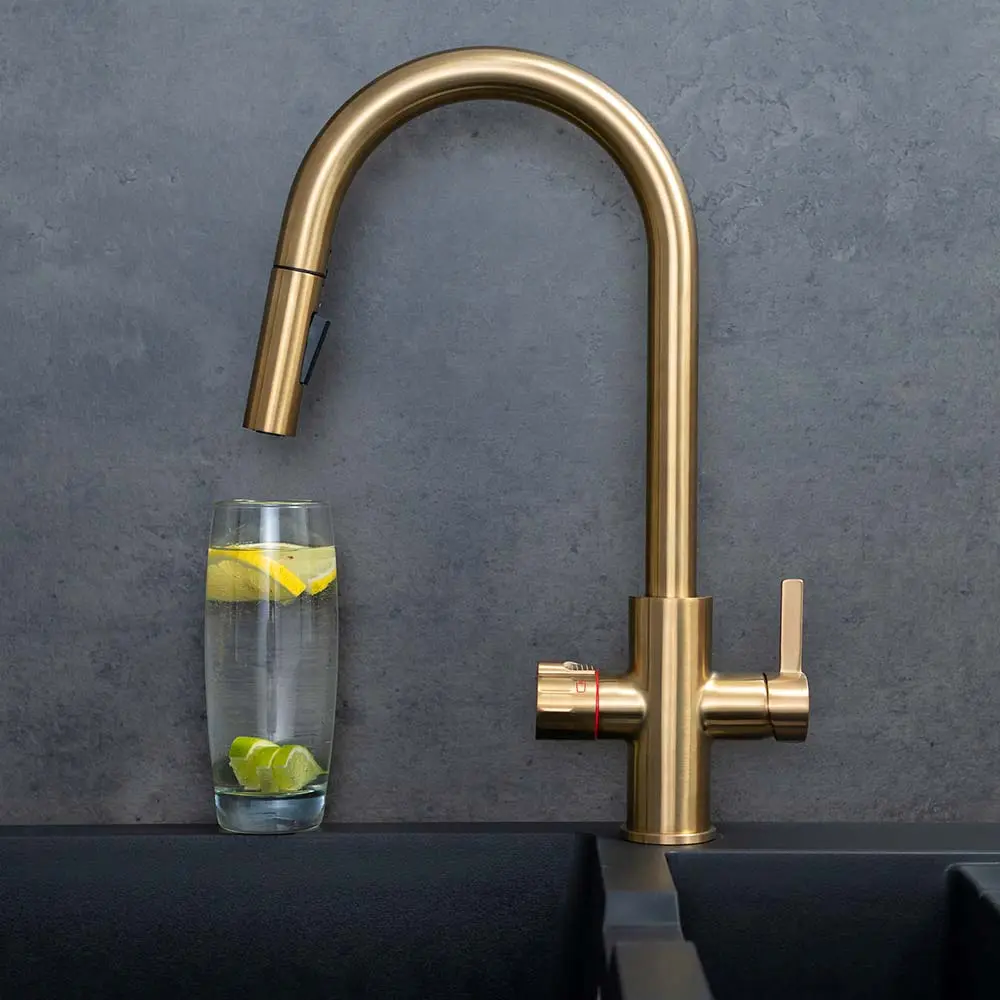

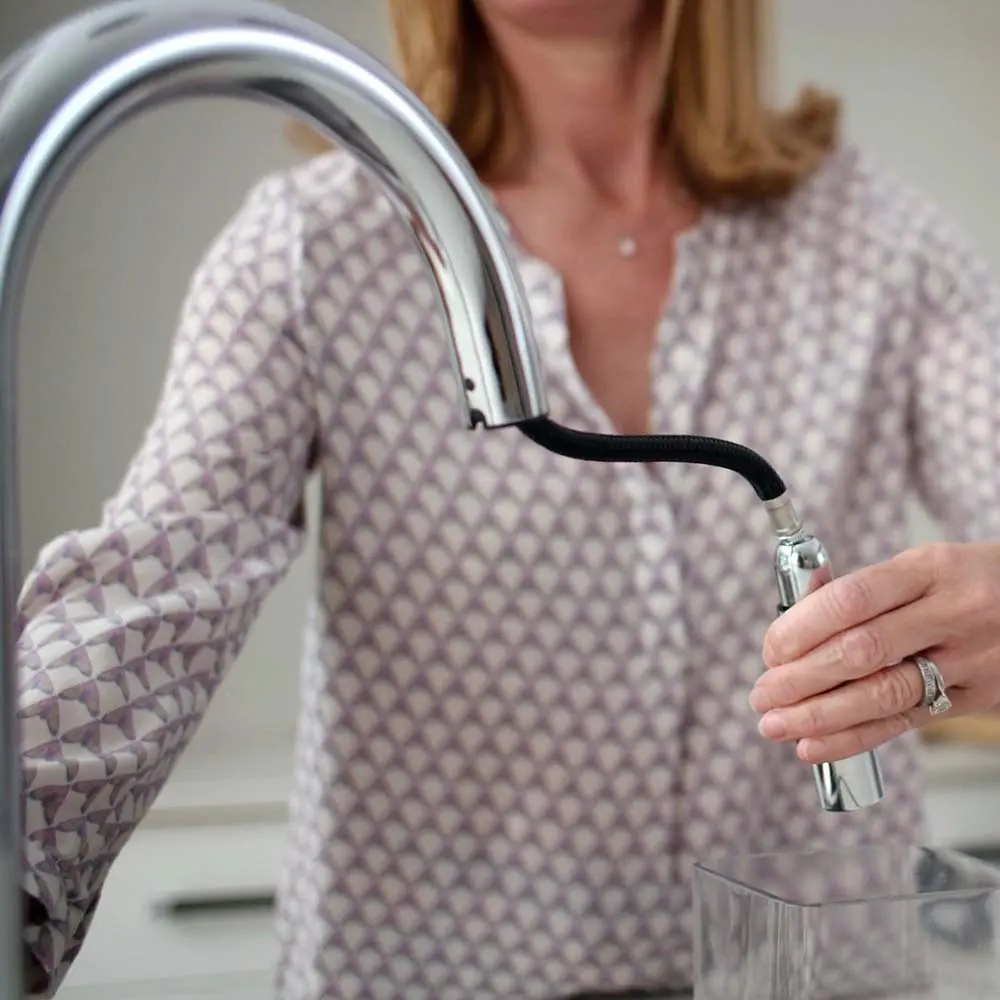

Flexible Pull-Out Spray

The flexible pull-out spray extends the reach of the tap, making it easier to direct the water exactly where it is needed.

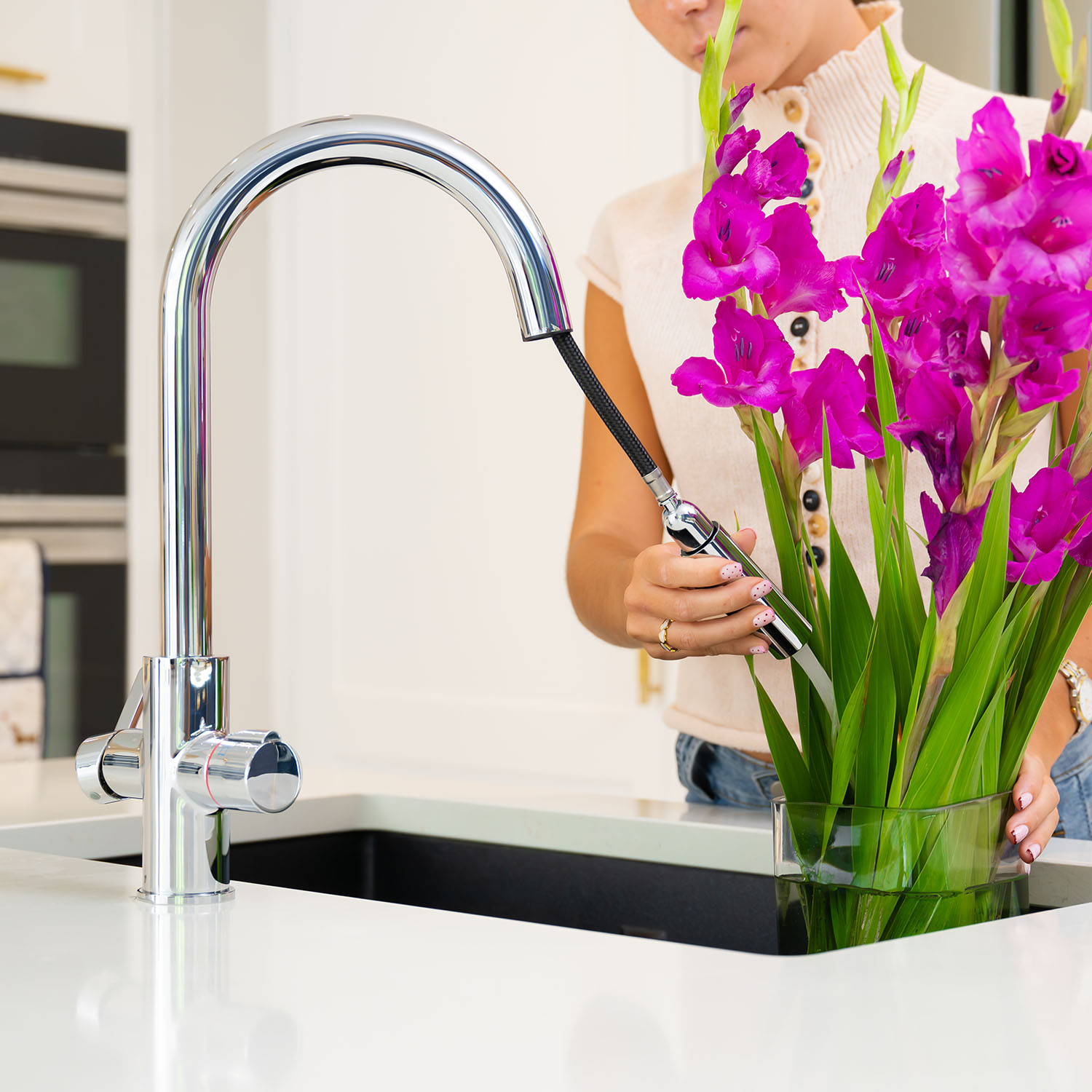

• Fill large pans, jugs and containers more easily

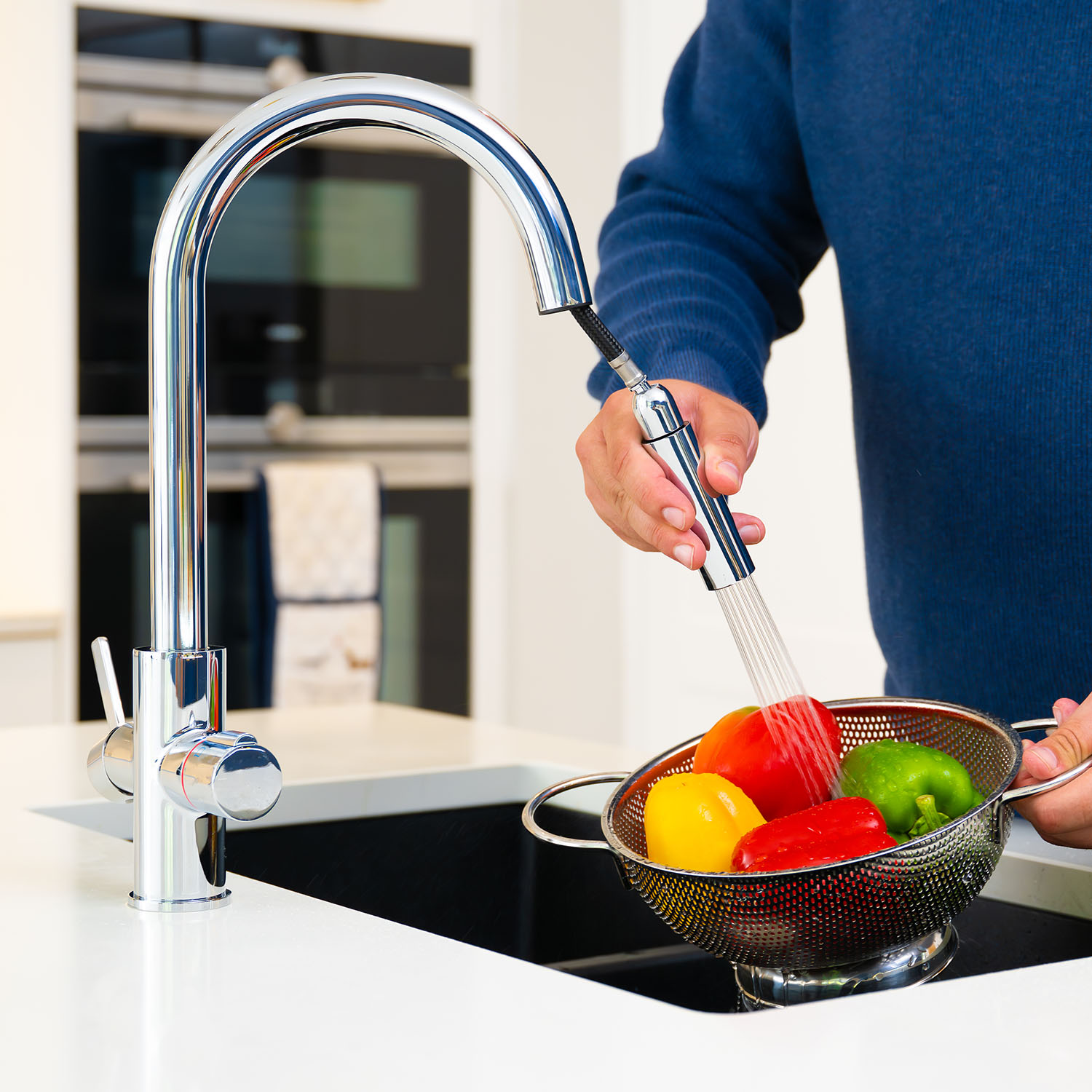

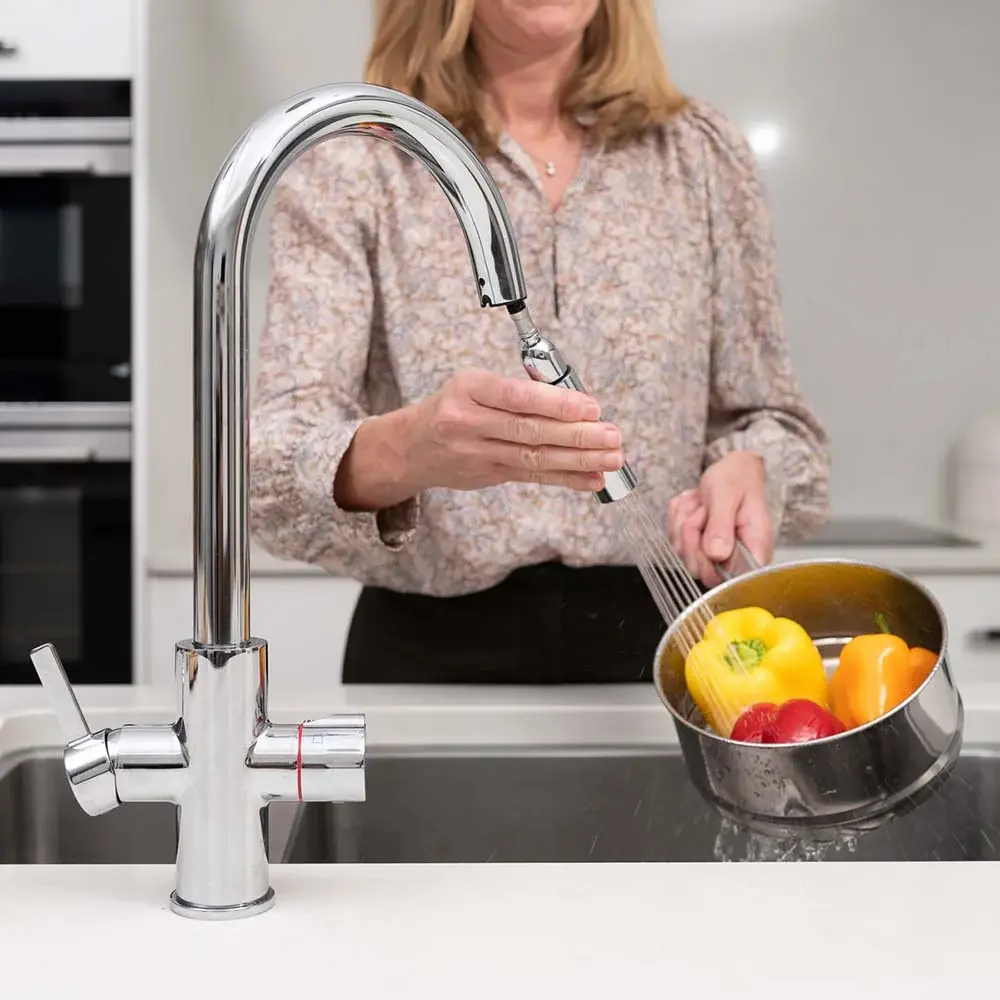

• Rinse fruit and vegetables with greater control
• Reach across wider or double-bowl sinks
• Clean awkward cookware and difficult areas around the sink

The pull-out spray retracts neatly back into the spout when not in use, maintaining the tap’s clean and streamlined appearance.

Choose Your Boiler Capacity

The Quel Ultra is available with a choice of two compact under-sink boiler sizes:

• 2.4-litre boiler – delivers approximately 13 litres per hour, equivalent to up to 54 cups
• 4-litre boiler – delivers approximately 22 litres per hour, equivalent to up to 92 cups

Both boiler options heat filtered water to a maximum of 98°C and allow the temperature to be adjusted to suit different hot drinks and cooking requirements.

Integrated Water Filtration

The integrated filtration system helps reduce unwanted impurities from the water while providing protection against limescale build-up inside the boiler.

Filtered water is supplied through both the boiling and cold filtered-water functions, providing convenient drinking water directly from the tap.

Child-Safe Boiling-Water Control

A spring-loaded child-safety mechanism helps prevent the accidental dispensing of boiling water. The boiling-water control must be deliberately activated and held while the water is being dispensed.

The insulated cool-touch spout helps reduce surface heat, supporting safer everyday use in busy family kitchens.

Solid-Brass Construction

The Quel Ultra is manufactured from solid brass and designed for frequent daily use. Its premium construction is complemented by:

• A durable C-shape design
• A 180° swivel spout
• Quarter-turn ceramic cartridges
• A flexible retractable pull-out spray
• A choice of contemporary kitchen finishes

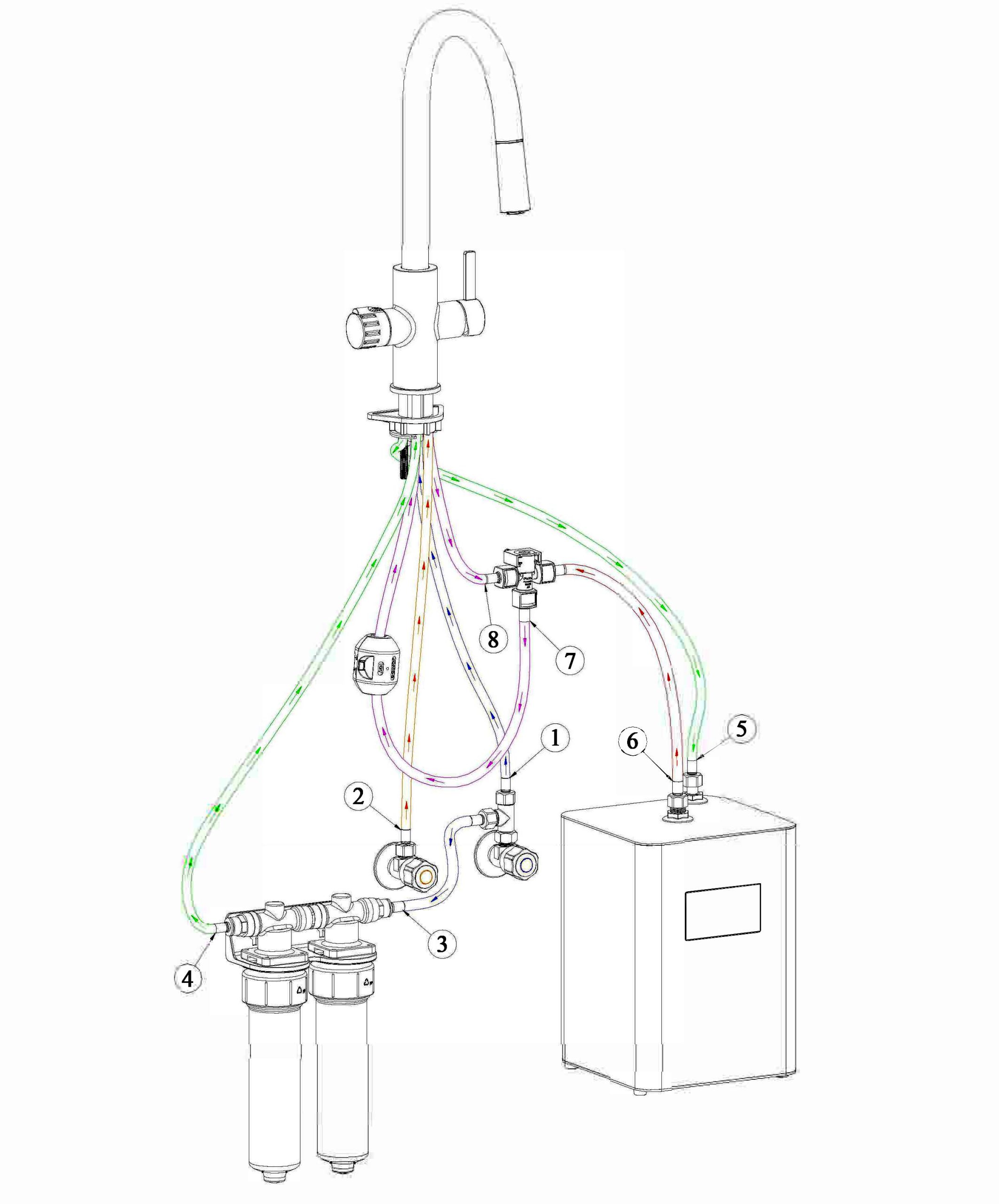

Compact Under-Sink Installation

The boiler and filtration components are installed discreetly inside the kitchen cupboard, helping to keep the worktop clear. The tap requires a standard 35 mm tap hole and is designed to operate with a water pressure of between 1.5 and 5.0 bar.

Important Pull-Out Spray Information

Because the pull-out spray uses a longer internal hose, a small amount of residual water may remain inside it. This can briefly affect the transition between hot and cold temperatures.

After using hot or boiling water, run cold water for a few seconds before retracting the spray head.

Warranty

• 5-year warranty on the Quel Ultra tap
• 2-year standard warranty on the under-sink boiler unit
• Boiler warranty extendable to 5 years, subject to registration and the applicable warranty terms

Warranty registration and the use of genuine replacement filters may be required to maintain full warranty cover.

• Mounting: Deck or sink mount (35mm hole required)
• Tap Handle Clearance: Minimum distance from the center of the tap hole to the wall is 80 mm
• Material: Quality brass for long life
• Spout Insulation: Keeps the spout cool to touch while dispensing boiling water
• Cartridges: Quarter turn ceramic cartridges for ease of use and long service life
• Spout Features: 180-degree swivel spout with aerator fitting for maximum flexibility and good water flow
• Levers:
  • Right-hand side Hot/Cold water lever – easy to use single lever
  • Left-hand side safety sprung lock handle for child safety and additional safety feature
• Additional Features: Opposite twist for cold filtered water
• Water Pressure Requirements: Minimum 1.5 bar, maximum 5.0 bar
• Installation: Flexible connecting hoses and tap fixing kit included
• Guarantee: 5 years
• Design: C-Shape Neck

Tap Dimensions:

• Height: 397.3mm
• Reach: 200mm
• Spout Width: 28mm
• Spout Height: 226.6mm
• Tap Hole: 35mm
