Quel Ultra Plus

Four Water Options From One Tap

The Quel Ultra Plus provides four everyday water functions from one beautifully designed kitchen tap:

• Filtered boiling water up to 98°C – for tea, coffee, cooking and food preparation
• Filtered cold drinking water – for fresh drinking water and filling bottles
• Standard hot water – supplied from your household hot-water system
• Standard cold water – supplied directly from the mains

Separate Boiling-Water Flow

One of the key differences of the Quel Ultra Plus is its dedicated boiling-water flow.

Boiling water is delivered through its own separate internal waterway, independent from the standard hot and cold-water flow.

This allows the Ultra Plus to provide:

• Stronger boiling-water delivery
• More consistent boiling-water flow
• Separation between boiling water and standard hot and cold-water functions
• Greater control when dispensing boiling water

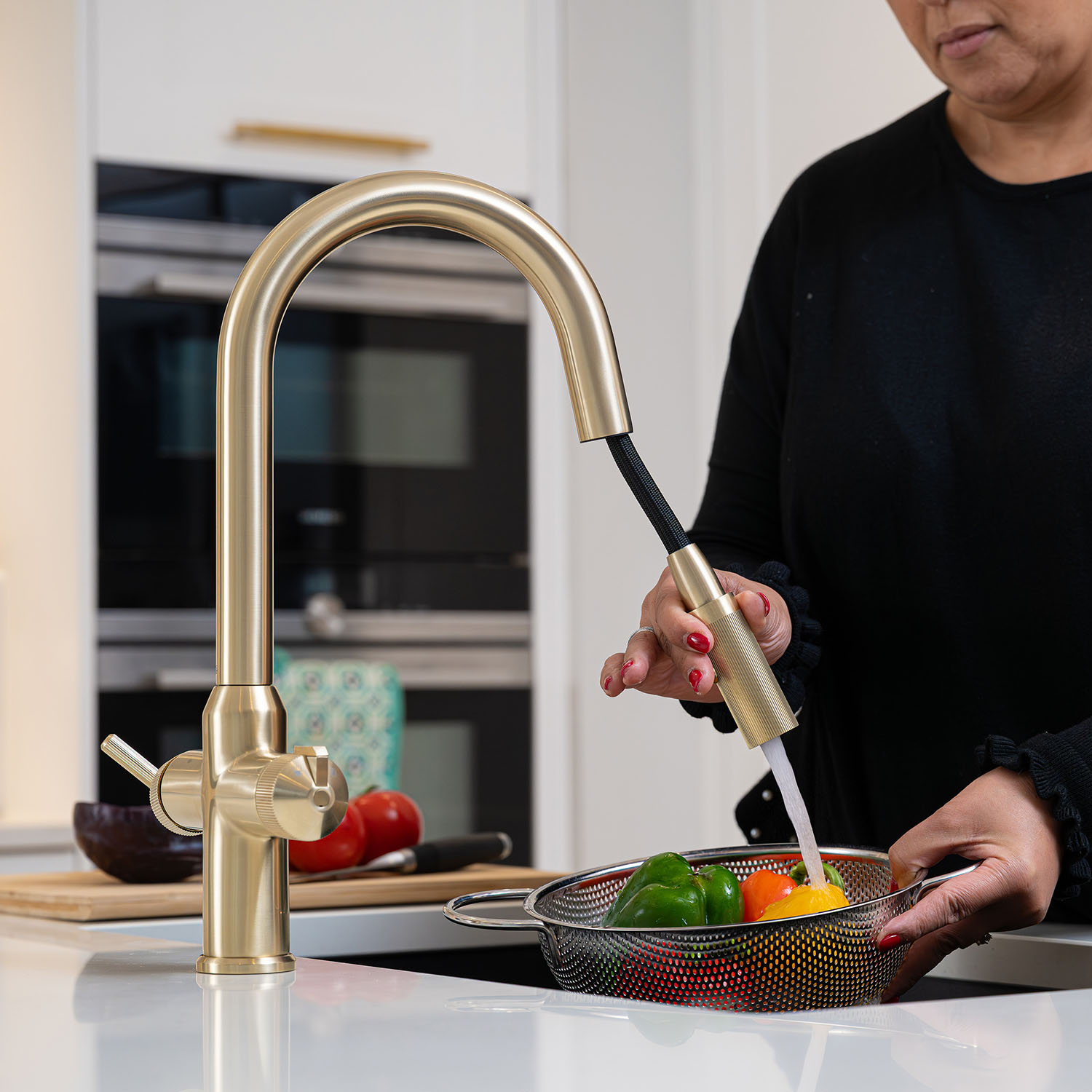

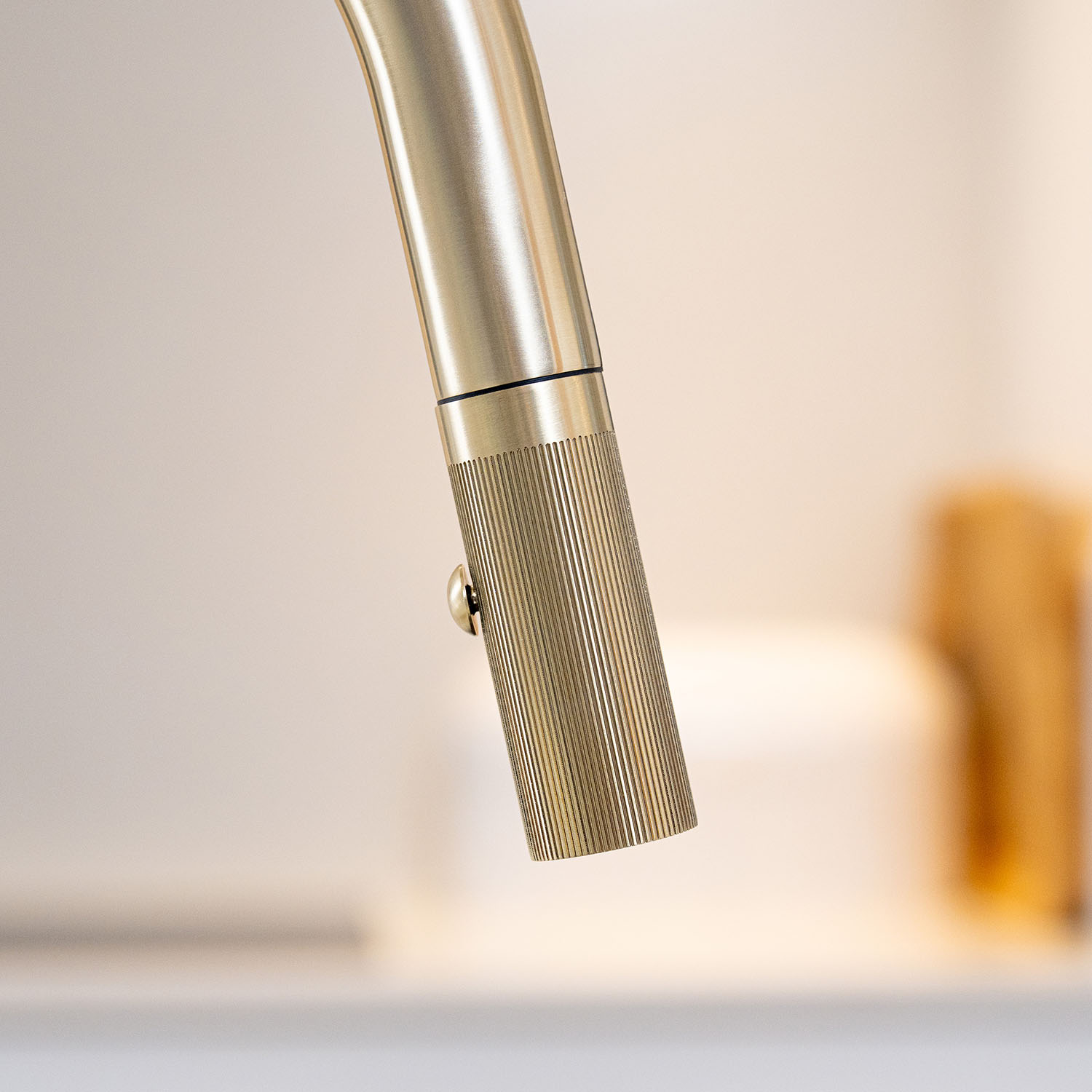

Professional Pull-Out Spray

The Ultra Plus features an exceptionally powerful professional pull-out spray with approximately 30–40 cm of additional reach.

The pull-out function gives you greater reach and control for everyday kitchen tasks, including:

• Rinsing plates and cookware
• Cleaning pots and pans
• Washing fruit and vegetables
• Filling larger pans, jugs and containers
• Cleaning around the entire sink
• Reaching areas that can be difficult to access with a conventional fixed spout

When not in use, the spray head retracts neatly back into the spout.

Adjustable 2.4-Litre Boiler

The compact under-sink boiler provides boiling water whenever you need it while fitting neatly inside your kitchen cabinet.

• Temperature adjustable from 55°C to 98°C
• 2.4-litre capacity
• Approximately 7–8 cups available from a full tank
• Approximately 13 litres of boiling water per hour
• Equivalent to up to 54 cups per hour
• Digital temperature controls
• Approximately eight-minute initial heat-up time
• Integrated drain valve for easier maintenance

Integrated Water Filtration

The Ultra Plus includes an integrated nano-phosphate water filtration system.

The filtration system helps:

• Reduce chlorine and other unwanted impurities
• Improve the taste and quality of drinking water
• Help protect the boiler against limescale build-up
• Maintain long-term system performance

Filtered water is supplied through both the boiling-water and filtered cold-water functions.

For optimum water quality and system performance, the filter should be replaced approximately every six months.

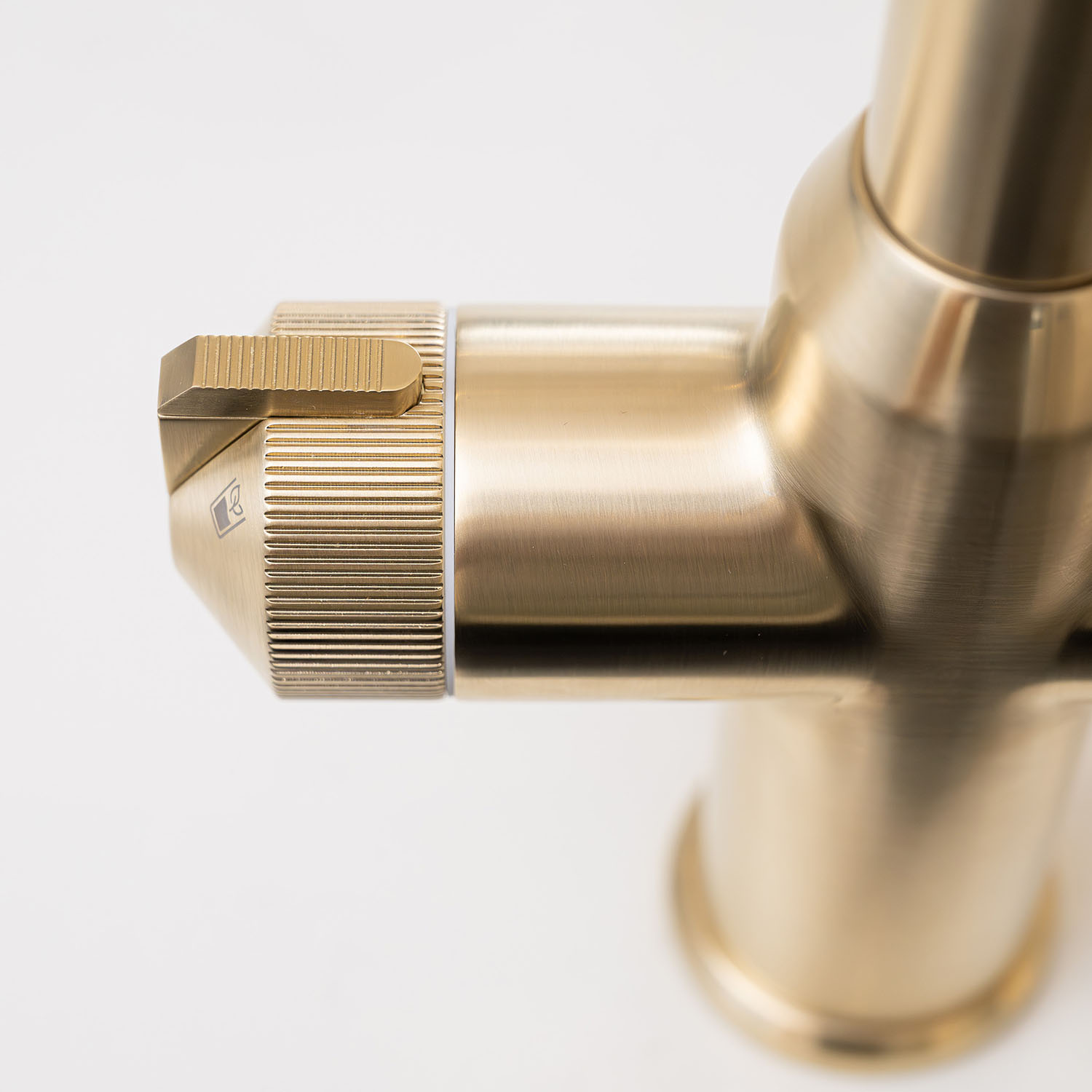

Child-Safe Boiling-Water Control

The Ultra Plus incorporates a spring-loaded child-safety mechanism to help prevent accidental dispensing of boiling water.

The boiling-water control must be deliberately activated and held while boiling water is dispensed.

An insulated cool-touch spout also helps reduce external surface heat during boiling-water operation.

The dedicated boiling-water flow also keeps boiling water separate from the standard hot and cold-water functions.

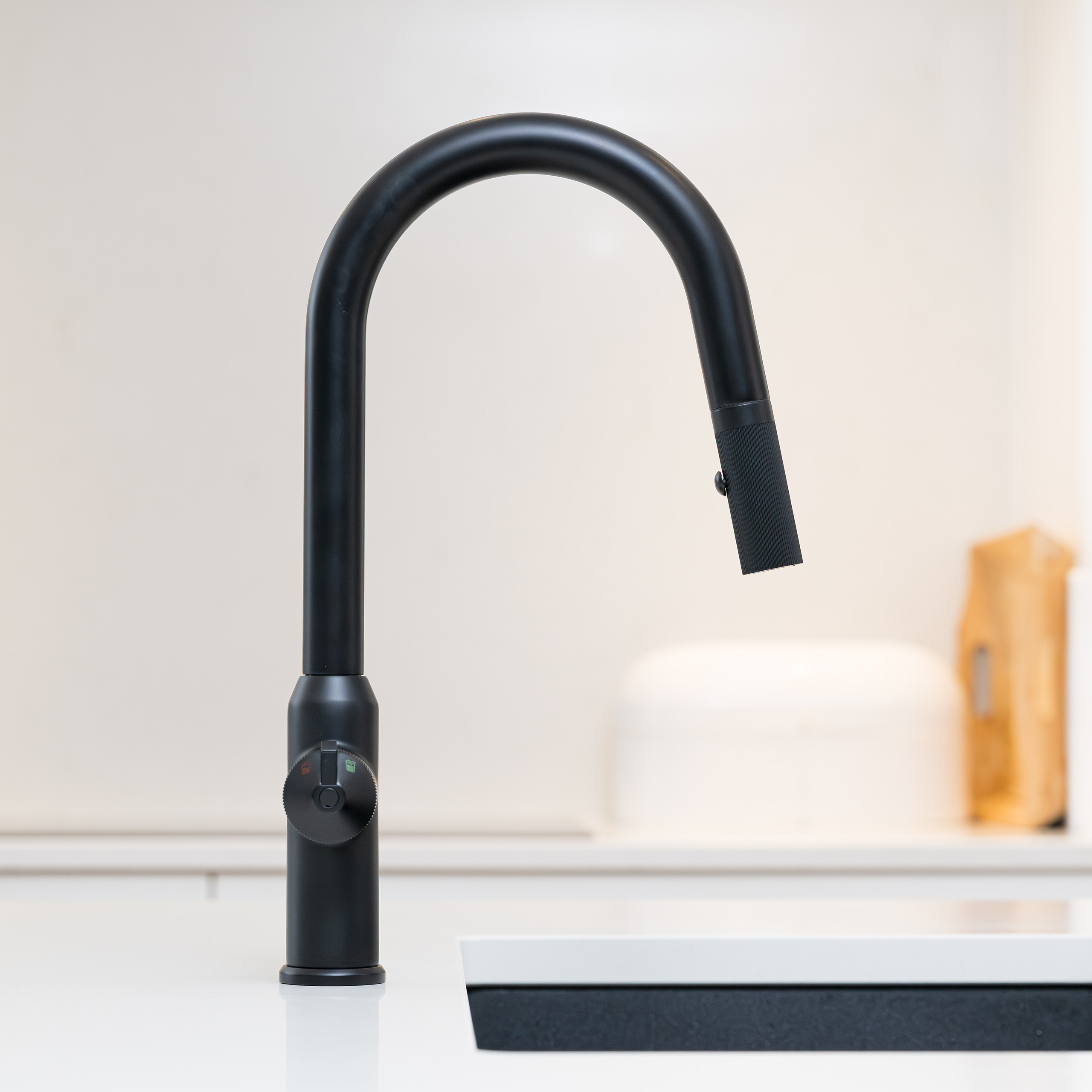

Premium Solid-Brass Construction

The Ultra Plus combines premium materials with distinctive detailing to create a tap designed to become a feature within your kitchen.

• Premium solid-brass construction
• Contemporary C-shape design
• Distinctive detailed spout
• Precision-finished controls
• High gooseneck profile
• Smooth 180° swivel spout
• Professional pull-out spray
• Choice of four contemporary finishes

Installation Requirements

For correct installation of the Quel Ultra Plus:

• Tap hole: 35 mm
• Required clearance: minimum 60 mm from the centre of the tap hole to the wall
• Minimum water pressure: 2 bar
• Maximum water pressure: 5 bar

Flexible connecting hoses and the tap fixing kit are included.

Warranty

For additional reassurance, the Quel Ultra Plus is covered by:

• 5-year warranty on the Quel Ultra Plus tap
• 2-year standard warranty on the under-sink boiler
• Boiler warranty extendable to 5 years, subject to registration and applicable warranty terms

Tap Specification:

• Mounting: Deck or sink mount (35mm hole required)
• Tap Handle Clearance: Minimum distance from the centre of the tap hole to the wall is 60 mm
• Material: Quality brass
• Spout Insulation: Keeps the spout cool to touch while dispensing boiling water
• Spout Features: 180-degree swivel spout with aerator fitting for maximum flexibility and good water flow
• Levers:

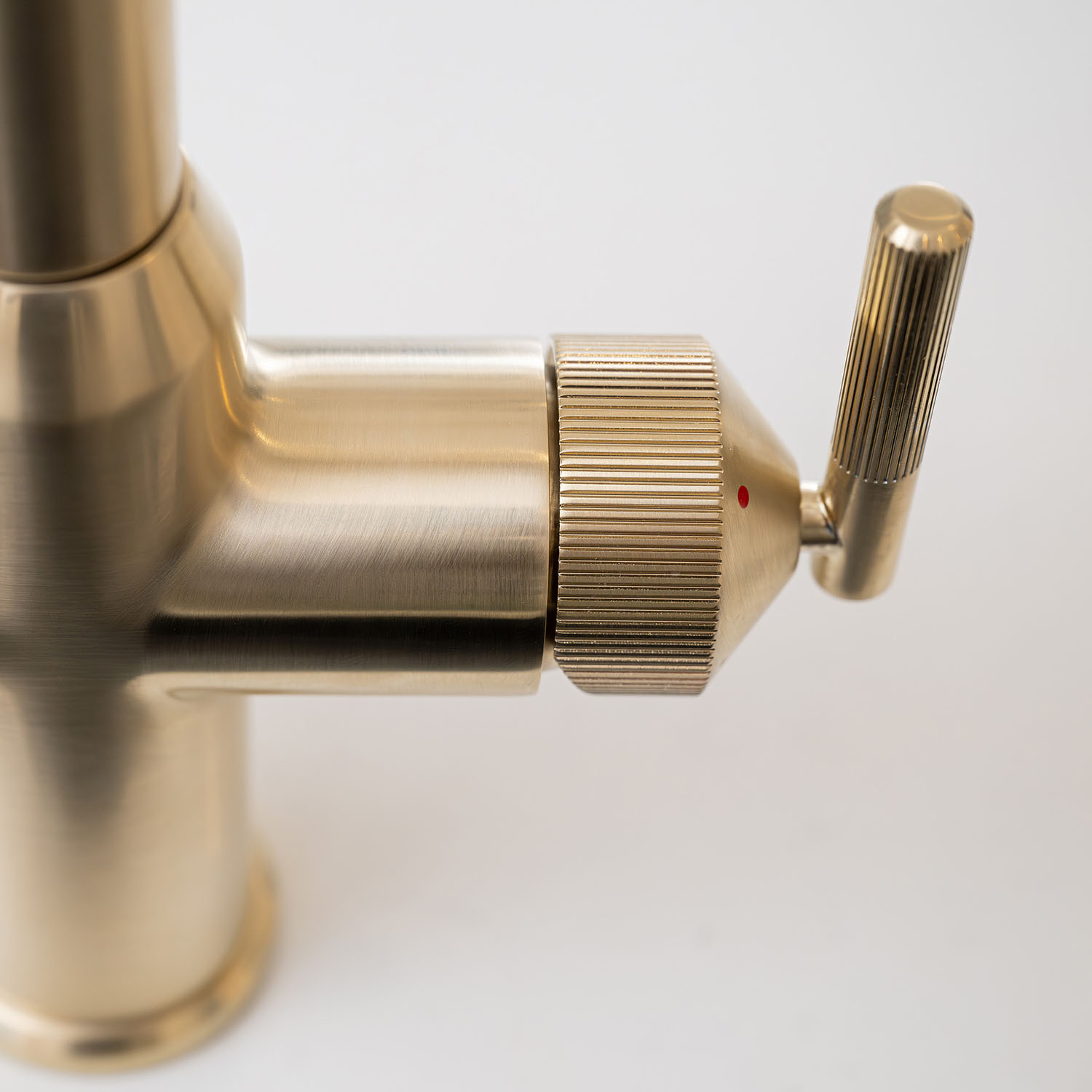

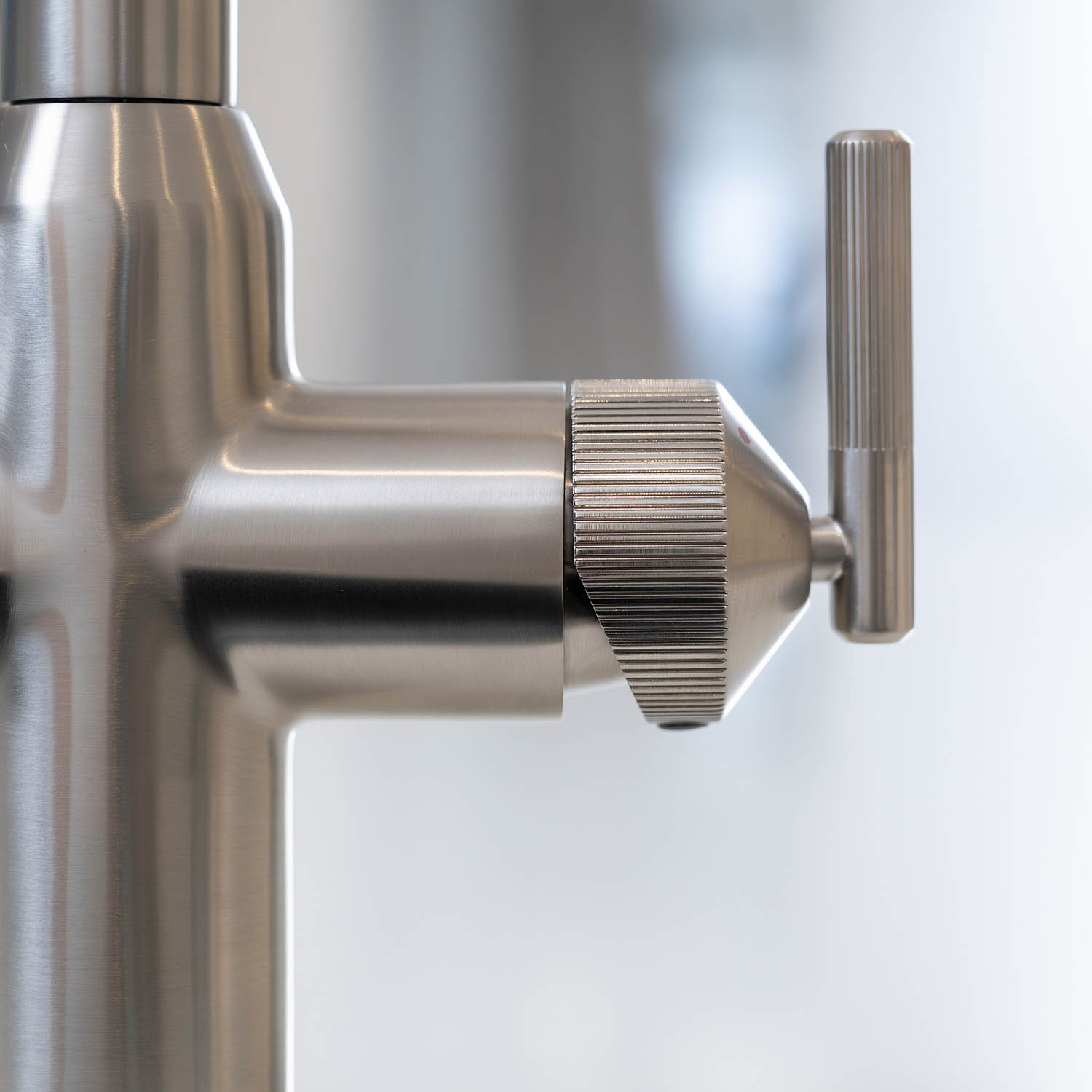

  • Right-hand side Hot/Cold water lever – easy to use single lever

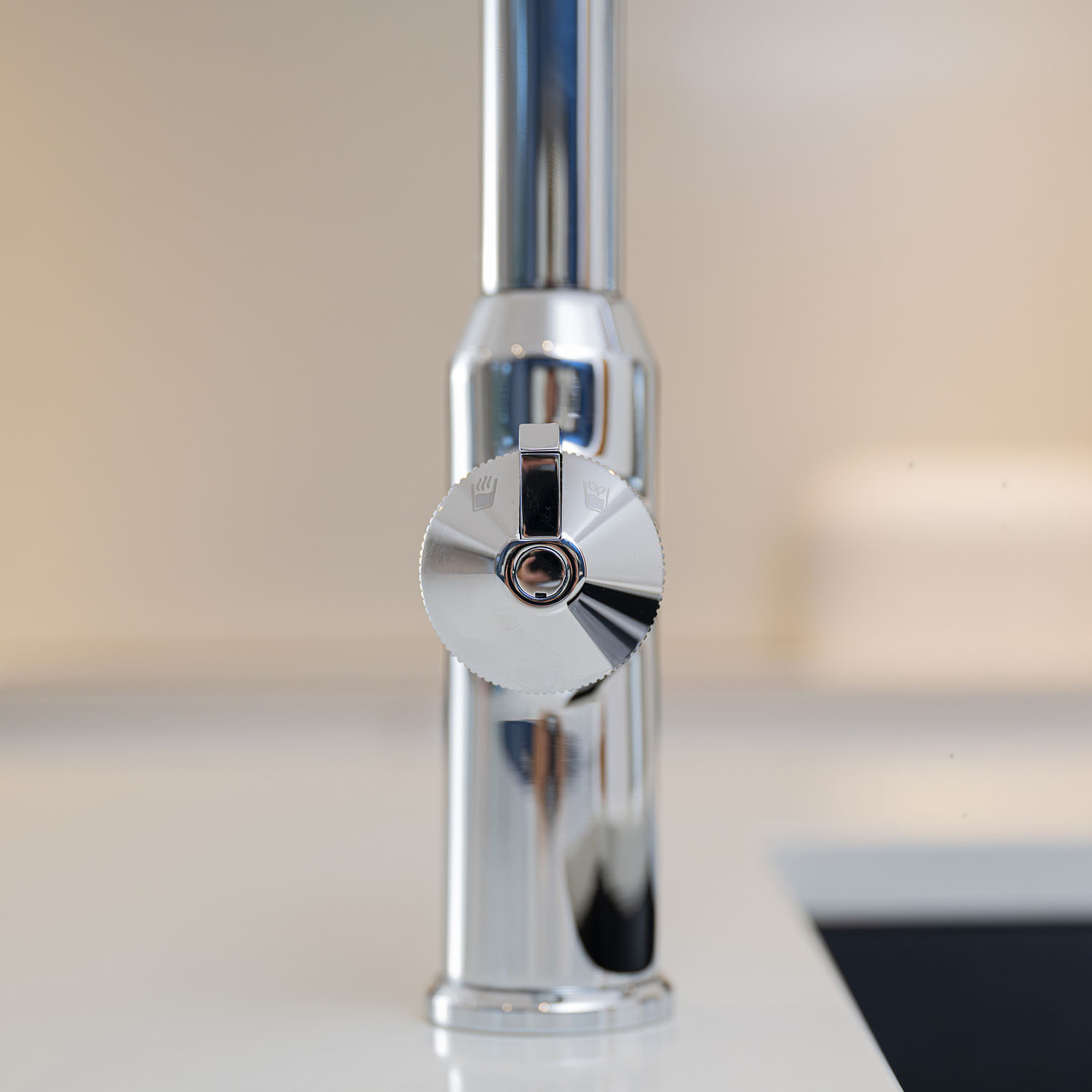

  • Left-hand side safety sprung lock handle for child safety and additional safety feature
• Additional Features: Opposite twist for cold filtered water,
  Separate boiling water flow technology delivers better pressure and consistent performance
• Water Pressure Requirements: Minimum 2 bar, maximum 5.0 bar
• Installation: Flexible connecting hoses and tap fixing kit included
• Guarantee: 5 years

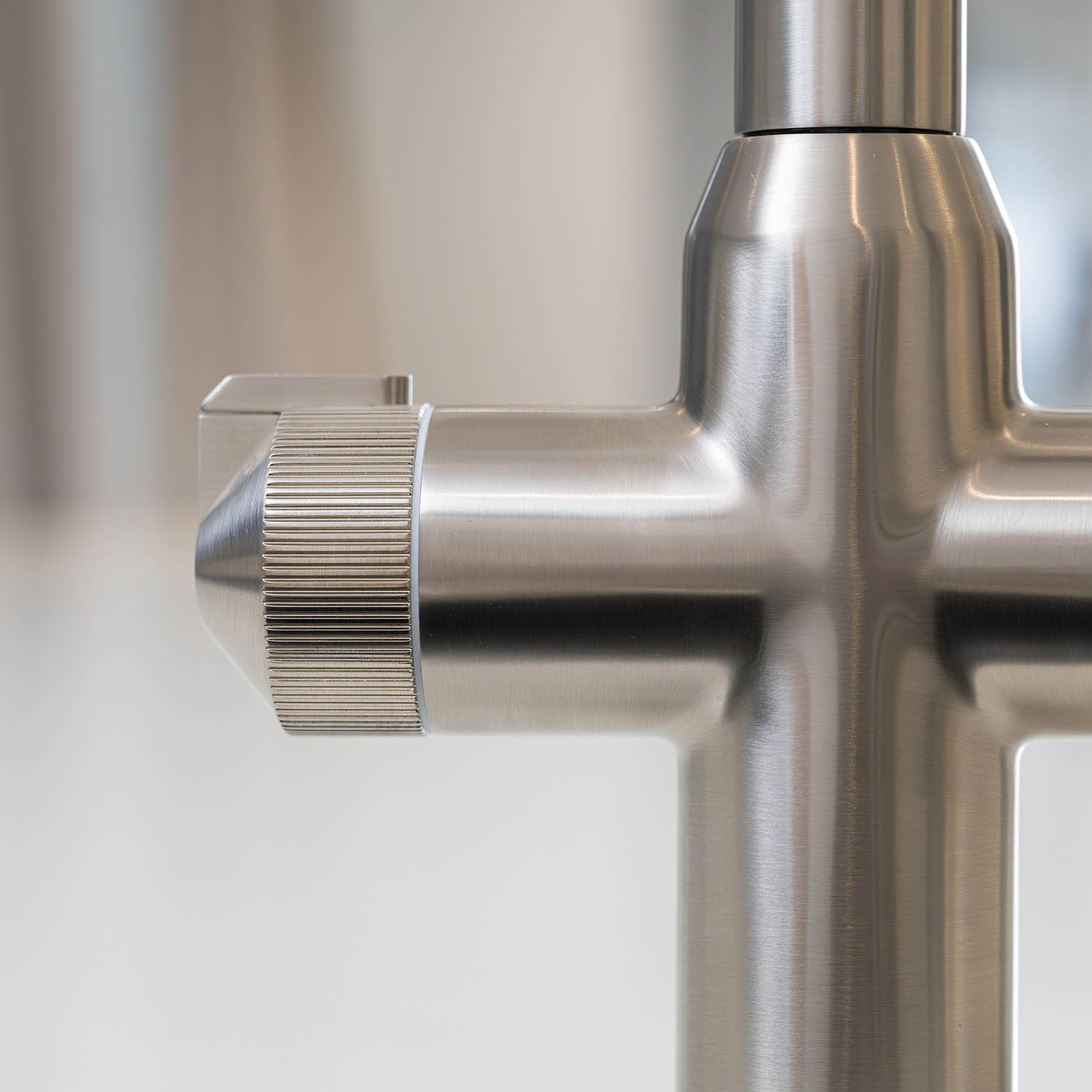

• Design: C-Shape Neck, Precision-engineered levers with tactile knurling, Pull-Out Spray

Tap Dimensions:

• Height: 420.5mm
• Reach: 208.8mm
• Spout Width: 30mm
• Spout Height: 198.3mm
• Extendable Pull-Out Hose: 30-40cm long

Important Notice!

Please note the Pull-Out Spray model has a longer hose, which may retain residual water, affecting temperature transition between uses. To mitigate, run cold water for a few seconds after using the hot/boiling tap.
